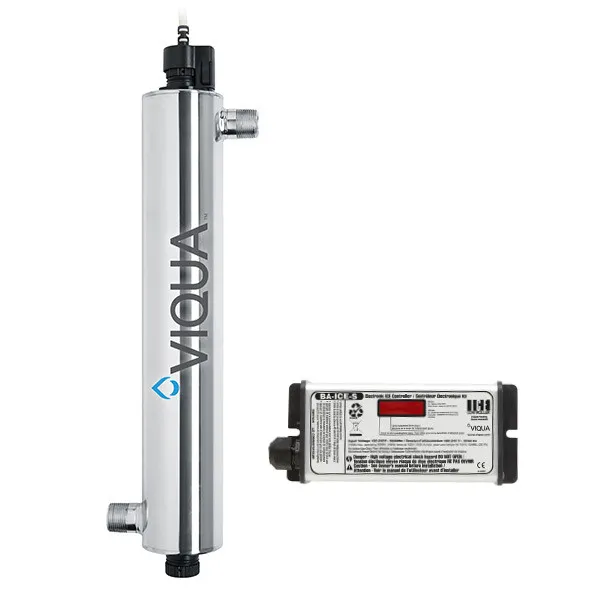

VIQUA – VH410-2B UV Disinfection Unit

Product Information:

Ensure safe, clean drinking water with the VIQUA VH410-2B UV Disinfection Unit – a powerful yet compact ultraviolet system designed for larger homes or light commercial applications.

Engineered with advanced UV technology, this system provides chemical-free water disinfection, effectively neutralising harmful microorganisms while preserving the natural taste of your water. Built for long-term reliability, it delivers consistent performance with minimal maintenance requirements.

With a recommended flow rate of up to 18 gallons per minute (70 litres per minute), the VH410-2B offers dependable protection for high-demand households and commercial environments.

Key Features:

• Advanced UV Technology: High-output Sterilume™ HO lamp for effective, chemical-free water disinfection.
• High Flow Capacity: Suitable for flow rates up to 18 gpm (70 lpm), ideal for larger properties.
• Digital Display Controller: Included as standard for easy system monitoring and operation.
• Lamp Replacement Reminder: Visual and audible alerts ensure consistent protection and timely maintenance.
• Compact & Durable Design: Powerful performance in a space-efficient unit.
• Low Maintenance Operation: UV lamp replacement recommended once every 12 months for continuous disinfection.

Specifications:

• Model: VH410-2B (Silver)

• Connection Size: 3/4″ BSPT / 1″ BSPT

• Voltage: 100–240V, 50–60Hz

• Power Consumption: 60W

• Lamp Power: 46W

• Lamp Type: Sterilume™ HO (High Output)

• Recommended Flow Rate: Up to 18 gpm (70 lpm)

• Operating Water Temperature: 2–40°C (36–104°F)

• Maximum Operating Pressure: 8.62 bar (125 psi)

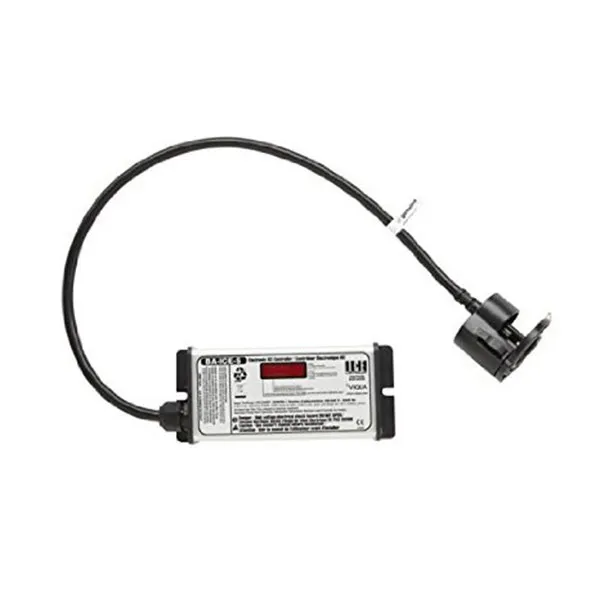

Controller Features:

• – Visual Power-On Indicator

• – Audible Lamp Failure Alert

• – Visual Lamp Life Remaining

• – Lamp Replacement Reminder

• – Total Running Time Display

Uses:

• Larger residential homes requiring whole-property UV protection

• Light commercial premises needing reliable water disinfection

• Properties seeking chemical-free water treatment solutions

• Applications where high flow rates and consistent performance are essential
